Statistics

PostgreSQL provides a lot of statistics without any extension, and some more with some fine extensions.

A very good survey of all available statistics and meaning can be found in these slides.

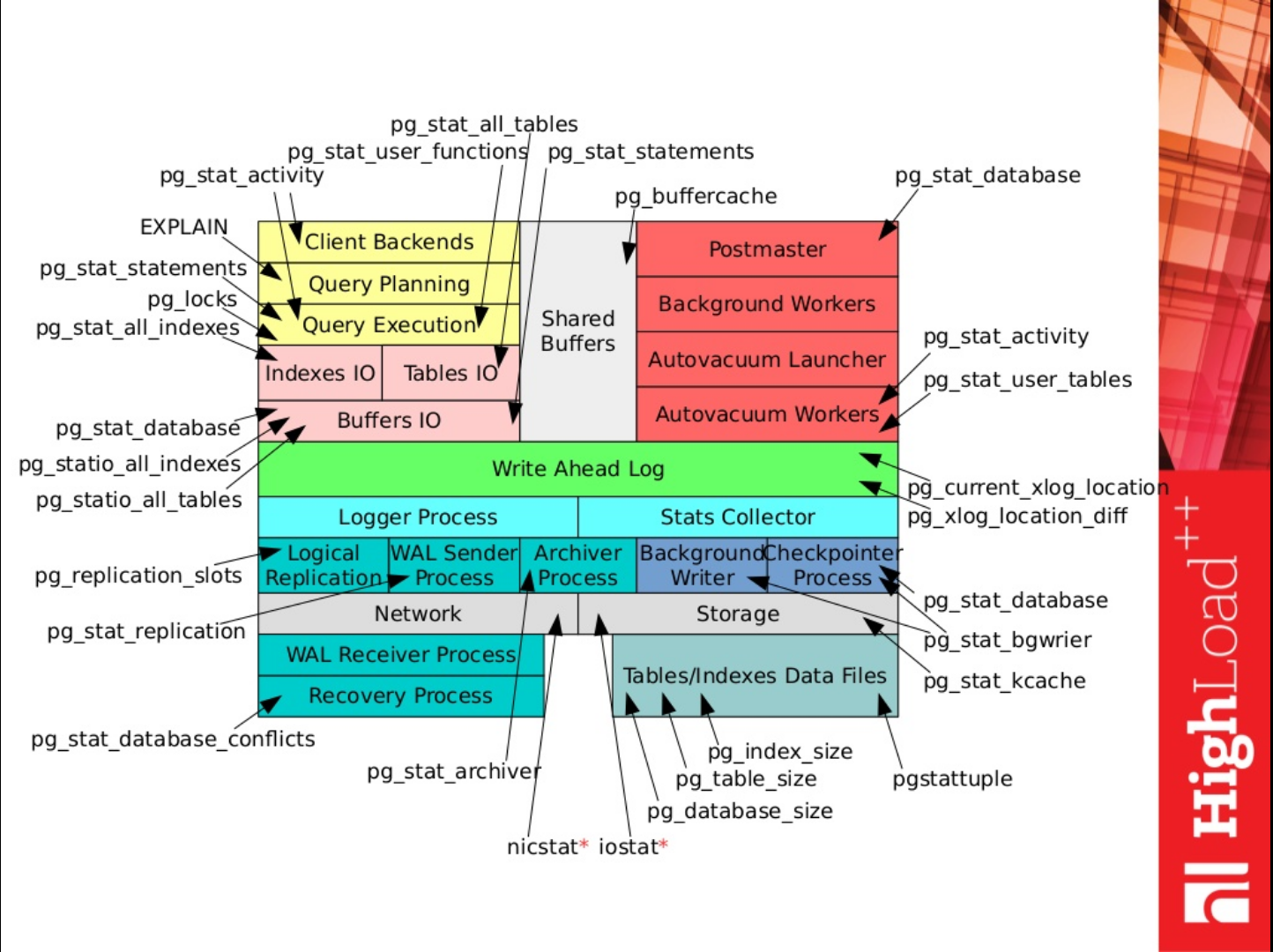

Extracted fom a slide, here is a schema with all these stats and the area they are related to.

For some general explanations on stats and the meaning of each field, you could read :

• this french doc quite old but still useful
• this doc from datadog, a monitoring tool

Checkpoints

What is it ? Some details.

It's a good starting point to be sure checkpoints behave well.

The pg_stat_bgwriter view contains a single row about that activity.

the_db=# select * from pg_stat_bgwriter;
 checkpoints_timed | checkpoints_req | checkpoint_write_time | checkpoint_sync_time | buffers_checkpoint | buffers_clean | maxwritten_clean | buffers_backend | buffers_backend_fsync | buffers_alloc |          stats_reset
-------------------+-----------------+-----------------------+----------------------+--------------------+---------------+------------------+-----------------+-----------------------+---------------+-------------------------------
                84 |               1 |             405618914 |               403083 |            1570508 |     122328215 |          1021398 |       138562615 |                     0 |     380478655 | 2018-01-18 09:14:13.970255+01
(1 row)

• checkpoints_timed gives the number of checkpoints triggered by the tiemout (GOOD)
• checkpoints_req gives the number of checkpoints triggered because the pg_xlog folder had reached its limit max_wal_size (BAD)

These specific stats could be resetted by :

select pg_stat_reset_shared('bgwriter');

Average time

And the following query

SELECT
  total_checkpoints,
  seconds_since_start / total_checkpoints / 60 AS minutes_between_checkpoints
  FROM
  (SELECT
    EXTRACT(EPOCH FROM (now() - stats_reset)) AS seconds_since_start,
    (checkpoints_timed+checkpoints_req) AS total_checkpoints
    FROM pg_stat_bgwriter
  ) AS sub;

gives :

• the total number of checkpoints that occured since last stat reset
• the average time of a checkpoint - should be closed to the checkpoint_timeout value

Who does the writing ?

More complex, the following query is given by (the great) Greg Smith :

SELECT
    (100 * checkpoints_req) /
        (checkpoints_timed + checkpoints_req) AS checkpoints_req_pct,
    pg_size_pretty(buffers_checkpoint * block_size /
         (checkpoints_timed + checkpoints_req)) AS avg_checkpoint_write,
    pg_size_pretty(block_size *
        (buffers_checkpoint + buffers_clean + buffers_backend)) AS total_written,
    100 * buffers_checkpoint /
        (buffers_checkpoint + buffers_clean + buffers_backend) AS checkpoint_write_pct,
    100 * buffers_backend /
        (buffers_checkpoint + buffers_clean + buffers_backend) AS backend_write_pct,
    100 * buffers_clean /
        (buffers_checkpoint + buffers_clean + buffers_backend) AS clean_write_pct,
    *
FROM pg_stat_bgwriter,
(SELECT cast(current_setting('block_size') AS integer) AS block_size) bs;

and provides :

• % of checkpoint triggered by size (almost 100% is GOOD)
• How much data the average checkpoint write ?
• Total written by all processes
• % of buffers written by checkpoint process (spread in time : GOOD)
• % of buffers written by backend queries (read from disk because data not in cache / flushed from cache to disk then read again because data is dirty : BAD)
• % of buffers written by clean process (because need some space in cache : BAD)

Checkpoints are the best way to persist data to disk because the I/O are spread on time. To be efficient, other processes (backend / clean) should use the cache most of the time, not the disk.

In addition, pg_bg_writer table also gives maxwritten_clean field that is the number of times the backgroung writer had to stop its writing (cleaning scan) because he has already written more buffers than specified in the bgwriter_lru_maxpages parameter.

Autovacuum

First of all, autovacuum activity could be traced with the same results in the pg_stat_user_tables, pg_stat_sys_tables and pg_stat_all_tables views.

For each table created by the user, you could find :

last_vacuum      |
last_autovacuum  | 2008-04-15 11:56:11.622041+02
last_analyze     |
last_autoanalyze | 2008-04-15 11:56:11.622041+02

for both manual au auto vacuum processes.

Logs are available through the conf parameter log_autovacuum_min_duration to trace long vacuum queries.

Some good metrics to monitor - they are expected to be stable in time :

• pg_stat_all_tables.n_dead_tup – number of dead tuples in each table (both user tables and system catalogs)
• (n_dead_tup / n_live_tup) – ratio of dead/live tuples in each table
• (pg_class.relpages / pg_class.reltuples) – space “per row”

New view in 9.6 provides information about in-progress vacuums : pg_stat_progress_vacuum.

An extension is available for more stats : pgstattuple.

Tables & index size

Tables and index sizes could be get by :

SELECT
    table_name,
    pg_size_pretty(pg_table_size(table_name)) AS table_size,
    pg_size_pretty(pg_indexes_size(table_name)) AS index_size,
    pg_size_pretty(pg_total_relation_size(table_name)) as total_size
FROM
(
  SELECT ('' || table_schema || '.' || table_name || '') AS table_name FROM information_schema.tables WHERE table_schema='public'
) AS all_tables1 ORDER BY pg_total_relation_size(table_name) desc;

which outputs :

table_name	table_size	index_size	total_size
public.table1	2102 MB	738 MB	2840 MB
public.table2	77 MB	130 MB	207 MB
public.table3	79 MB	98 MB	177 MB

The total for user tables is get by :

SELECT
    pg_size_pretty(sum(pg_table_size(table_name))) AS table_size,
    pg_size_pretty(sum(pg_indexes_size(table_name))) AS index_size
FROM
(
  SELECT ('' || table_schema || '.' || table_name || '') AS table_name FROM information_schema.tables WHERE table_schema='public'
) AS all_tables1;

which outputs :

table_size	index_size
422 GB	277 GB

Table Bloating

Bloating queries come from there : https://github.com/rach/pome/blob/develop/query.go.

Stats per table

Estimate system tables bloat size / ratio with this query :

SELECT schemaname as schema, tblname as table,
  CASE WHEN (tblpages-est_tblpages_ff)*bs > 0
    THEN ((tblpages-est_tblpages_ff)*bs)::bigint
    ELSE 0
  END AS bloat_bytes,
  CASE WHEN tblpages - est_tblpages_ff > 0
    THEN round((100 * (tblpages - est_tblpages_ff)/tblpages::float)::numeric, 1)
    ELSE 0
  END AS bloat_ratio
FROM (
  SELECT ceil( reltuples / ( (bs-page_hdr)/tpl_size ) ) + ceil( toasttuples / 4 ) AS est_tblpages,
    ceil( reltuples / ( (bs-page_hdr)*fillfactor/(tpl_size*100) ) ) + ceil( toasttuples / 4 ) AS est_tblpages_ff,
    tblpages, fillfactor, bs, tblid, schemaname, tblname, heappages, toastpages, is_na
  FROM (
    SELECT
      ( 4 + tpl_hdr_size + tpl_data_size + (2*ma)
        - CASE WHEN tpl_hdr_size%ma = 0 THEN ma ELSE tpl_hdr_size%ma END
        - CASE WHEN ceil(tpl_data_size)::int%ma = 0 THEN ma ELSE ceil(tpl_data_size)::int%ma END
      ) AS tpl_size, bs - page_hdr AS size_per_block, (heappages + toastpages) AS tblpages, heappages,
      toastpages, reltuples, toasttuples, bs, page_hdr, tblid, schemaname, tblname, fillfactor, is_na
    FROM (
      SELECT
        tbl.oid AS tblid, ns.nspname AS schemaname, tbl.relname AS tblname, tbl.reltuples,
        tbl.relpages AS heappages, coalesce(toast.relpages, 0) AS toastpages,
        coalesce(toast.reltuples, 0) AS toasttuples,
        coalesce(substring(
          array_to_string(tbl.reloptions, ' ')
          FROM '%fillfactor=#"__#"%' FOR '#')::smallint, 100) AS fillfactor,
        current_setting('block_size')::numeric AS bs,
        CASE WHEN version()~'mingw32' OR version()~'64-bit|x86_64|ppc64|ia64|amd64' THEN 8 ELSE 4 END AS ma,
        24 AS page_hdr,
        23 + CASE WHEN MAX(coalesce(null_frac,0)) > 0 THEN ( 7 + count(*) ) / 8 ELSE 0::int END
          + CASE WHEN tbl.relhasoids THEN 4 ELSE 0 END AS tpl_hdr_size,
        sum( (1-coalesce(s.null_frac, 0)) * coalesce(s.avg_width, 1024) ) AS tpl_data_size,
        bool_or(att.atttypid = 'pg_catalog.name'::regtype) AS is_na
      FROM pg_attribute AS att
        JOIN pg_class AS tbl ON att.attrelid = tbl.oid
        JOIN pg_namespace AS ns ON ns.oid = tbl.relnamespace
        JOIN pg_stats AS s ON s.schemaname=ns.nspname
          AND s.tablename = tbl.relname AND s.inherited=false AND s.attname=att.attname
        LEFT JOIN pg_class AS toast ON tbl.reltoastrelid = toast.oid
      WHERE att.attnum > 0 AND NOT att.attisdropped
        AND tbl.relkind = 'r' AND ns.nspname = 'pg_catalog'
      GROUP BY 1,2,3,4,5,6,7,8,9,10, tbl.relhasoids
      ORDER BY 2,3
    ) AS s
  ) AS s2
) AS s3 order by bloat_ratio desc;

For user tables, set the schemaname value with AND ns.nspname='public' and possibly add a relname filter with AND tbl.relname like '%Myfilter%' .

Example of output indicating some bad bloating ratio :

   schema   |       table        | bloat_bytes | bloat_ratio
------------+--------------------+-------------+-------------
 pg_catalog | pg_class           |    39116800 |        68.3
 pg_catalog | pg_index           |    17539072 |        61.8
 pg_catalog | pg_depend          |    15507456 |        57.2
 pg_catalog | pg_type            |    15269888 |        56.1
 pg_catalog | pg_attribute       |    99336192 |        55.6
 pg_catalog | pg_constraint      |      172032 |        36.2
 pg_catalog | pg_shdepend        |      598016 |        14.5
 pg_catalog | pg_description     |       16384 |         5.9

To illustrate Vacuum effect on table bloating :

# Gather bloating stats before vacuum
   schema   |       table        | bloat_bytes | bloat_ratio
------------+--------------------+-------------+-------------
 public     | my_bloated_table   |   128622592 | 68.698315467075

# Then vacuum
vacuum (full, analyze) my_bloated_table;

# Finally refresh stats
   schema   |       table        | bloat_bytes | bloat_ratio
------------+--------------------+-------------+-------------
 public     | my_bloated_table   |   6520832   | 9.74176967323461

It's much better !

Stats total

To get total bloating of all databases of a server, execute :

SELECT pg_size_pretty(SUM(real_size)::bigint) as real_size,
       pg_size_pretty(SUM(bloat_bytes)::bigint) as bloat_size FROM
(
  SELECT
    bs*tblpages AS real_size,
    CASE WHEN (tblpages-est_tblpages_ff)*bs > 0
      THEN ((tblpages-est_tblpages_ff)*bs)::bigint
      ELSE 0
    END AS bloat_bytes
  FROM (
    SELECT ceil( reltuples / ( (bs-page_hdr)/tpl_size ) ) + ceil( toasttuples / 4 ) AS est_tblpages,
      ceil( reltuples / ( (bs-page_hdr)*fillfactor/(tpl_size*100) ) ) + ceil( toasttuples / 4 ) AS est_tblpages_ff,
      tblpages, fillfactor, bs, tblid, schemaname, tblname, heappages, toastpages, is_na
    FROM (
      SELECT
        ( 4 + tpl_hdr_size + tpl_data_size + (2*ma)
          - CASE WHEN tpl_hdr_size%ma = 0 THEN ma ELSE tpl_hdr_size%ma END
          - CASE WHEN ceil(tpl_data_size)::int%ma = 0 THEN ma ELSE ceil(tpl_data_size)::int%ma END
        ) AS tpl_size, bs - page_hdr AS size_per_block, (heappages + toastpages) AS tblpages, heappages,
        toastpages, reltuples, toasttuples, bs, page_hdr, tblid, schemaname, tblname, fillfactor, is_na
      FROM (
        SELECT
          tbl.oid AS tblid, ns.nspname AS schemaname, tbl.relname AS tblname, tbl.reltuples,
          tbl.relpages AS heappages, coalesce(toast.relpages, 0) AS toastpages,
          coalesce(toast.reltuples, 0) AS toasttuples,
          coalesce(substring(
            array_to_string(tbl.reloptions, ' ')
            FROM '%fillfactor=#"__#"%' FOR '#')::smallint, 100) AS fillfactor,
          current_setting('block_size')::numeric AS bs,
          CASE WHEN version()~'mingw32' OR version()~'64-bit|x86_64|ppc64|ia64|amd64' THEN 8 ELSE 4 END AS ma,
          24 AS page_hdr,
          23 + CASE WHEN MAX(coalesce(null_frac,0)) > 0 THEN ( 7 + count(*) ) / 8 ELSE 0::int END
            + CASE WHEN tbl.relhasoids THEN 4 ELSE 0 END AS tpl_hdr_size,
          sum( (1-coalesce(s.null_frac, 0)) * coalesce(s.avg_width, 1024) ) AS tpl_data_size,
          bool_or(att.atttypid = 'pg_catalog.name'::regtype) AS is_na
        FROM pg_attribute AS att
          JOIN pg_class AS tbl ON att.attrelid = tbl.oid
          JOIN pg_namespace AS ns ON ns.oid = tbl.relnamespace
          JOIN pg_stats AS s ON s.schemaname=ns.nspname
            AND s.tablename = tbl.relname AND s.inherited=false AND s.attname=att.attname
          LEFT JOIN pg_class AS toast ON tbl.reltoastrelid = toast.oid
        WHERE att.attnum > 0 AND NOT att.attisdropped
          AND tbl.relkind = 'r' AND ns.nspname = 'pg_catalog'
        GROUP BY 1,2,3,4,5,6,7,8,9,10, tbl.relhasoids
        ORDER BY 2,3
      ) AS s
    ) AS s2
  ) AS s3
) as s4;

It outputs for example :

  real_size | bloat_size
 -----------+-------------
  310 MB    | 179 MB

Index bloating

Bloating queries come from there : https://github.com/rach/pome/blob/develop/query.go.

Stats per index

Estimate system index bloat size / ratio with this query :

WITH btree_index_atts AS (
    SELECT nspname, relname, reltuples, relpages, indrelid, relam,
        regexp_split_to_table(indkey::text, ' ')::smallint AS attnum,
        indexrelid as index_oid
    FROM pg_index
    JOIN pg_class ON pg_class.oid=pg_index.indexrelid
    JOIN pg_namespace ON pg_namespace.oid = pg_class.relnamespace
    JOIN pg_am ON pg_class.relam = pg_am.oid
    WHERE pg_am.amname = 'btree' AND pg_namespace.nspname = 'pg_catalog'
    ),
index_item_sizes AS (
    SELECT
    i.nspname, i.relname, i.reltuples, i.relpages, i.relam,
    (quote_ident(s.schemaname) || '.' || quote_ident(s.tablename))::regclass AS starelid, a.attrelid AS table_oid, index_oid,
    current_setting('block_size')::numeric AS bs,
    /* MAXALIGN: 4 on 32bits, 8 on 64bits (and mingw32 ?) */
    CASE
        WHEN version() ~ 'mingw32' OR version() ~ '64-bit' THEN 8
        ELSE 4
    END AS maxalign,
    24 AS pagehdr,
    /* per tuple header: add index_attribute_bm if some cols are null-able */
    CASE WHEN max(coalesce(s.null_frac,0)) = 0
        THEN 2
        ELSE 6
    END AS index_tuple_hdr,
    /* data len: we remove null values save space using it fractionnal part from stats */
    sum( (1-coalesce(s.null_frac, 0)) * coalesce(s.avg_width, 2048) ) AS nulldatawidth
    FROM pg_attribute AS a
    JOIN pg_stats AS s ON (quote_ident(s.schemaname) || '.' || quote_ident(s.tablename))::regclass=a.attrelid AND s.attname = a.attname
    JOIN btree_index_atts AS i ON i.indrelid = a.attrelid AND a.attnum = i.attnum
    WHERE a.attnum > 0
    GROUP BY 1, 2, 3, 4, 5, 6, 7, 8, 9
),
index_aligned AS (
    SELECT maxalign, bs, nspname, relname AS index_name, reltuples,
        relpages, relam, table_oid, index_oid,
      ( 2 +
          maxalign - CASE /* Add padding to the index tuple header to align on MAXALIGN */
            WHEN index_tuple_hdr%maxalign = 0 THEN maxalign
            ELSE index_tuple_hdr%maxalign
          END
        + nulldatawidth + maxalign - CASE /* Add padding to the data to align on MAXALIGN */
            WHEN nulldatawidth::integer%maxalign = 0 THEN maxalign
            ELSE nulldatawidth::integer%maxalign
          END
      )::numeric AS nulldatahdrwidth, pagehdr
    FROM index_item_sizes AS s1
),
otta_calc AS (
  SELECT bs, nspname, table_oid, index_oid, index_name, relpages, coalesce(
    ceil((reltuples*(4+nulldatahdrwidth))/(bs-pagehdr::float)) +
      CASE WHEN am.amname IN ('hash','btree') THEN 1 ELSE 0 END , 0 -- btree and hash have a metadata reserved block
    ) AS otta
  FROM index_aligned AS s2
    LEFT JOIN pg_am am ON s2.relam = am.oid
),
raw_bloat AS (
    SELECT current_database() as dbname, nspname, c.relname AS tablename, index_name,
        bs*(sub.relpages)::bigint AS totalbytes,
        CASE
            WHEN sub.relpages <= otta THEN 0
            ELSE bs*(sub.relpages-otta)::bigint END
            AS wastedbytes,
        CASE
            WHEN sub.relpages <= otta
            THEN 0 ELSE bs*(sub.relpages-otta)::bigint * 100 / (bs*(sub.relpages)::bigint) END
            AS realbloat,
        pg_relation_size(sub.table_oid) as table_bytes
    FROM otta_calc AS sub
    JOIN pg_class AS c ON c.oid=sub.table_oid
)
SELECT  nspname AS schema,
        tablename as table,
        index_name AS index,
        wastedbytes as bloat_bytes,
        round(realbloat, 1) as bloat_ratio,
        totalbytes as index_size
FROM raw_bloat
ORDER BY wastedbytes DESC;

For user tables, set the schemaname value with AND pg_namespace.nspname='public' and possibly add a relname filter with WHERE tablename='probes_global_statistics' before the last ORDER BY.

Stats total

To get total bloating of all databases of a server, execute :

SELECT pg_size_pretty(SUM(index_size)::bigint) as index_size,
       pg_size_pretty(SUM(bloat_bytes)::bigint) as bloat_size
FROM (

WITH btree_index_atts AS (
    SELECT nspname, relname, reltuples, relpages, indrelid, relam,
        regexp_split_to_table(indkey::text, ' ')::smallint AS attnum,
        indexrelid as index_oid
    FROM pg_index
    JOIN pg_class ON pg_class.oid=pg_index.indexrelid
    JOIN pg_namespace ON pg_namespace.oid = pg_class.relnamespace
    JOIN pg_am ON pg_class.relam = pg_am.oid
    WHERE pg_am.amname = 'btree' AND pg_namespace.nspname = 'pg_catalog'
    ),
index_item_sizes AS (
    SELECT
    i.nspname, i.relname, i.reltuples, i.relpages, i.relam,
    (quote_ident(s.schemaname) || '.' || quote_ident(s.tablename))::regclass AS starelid, a.attrelid AS table_oid, index_oid,
    current_setting('block_size')::numeric AS bs,
    /* MAXALIGN: 4 on 32bits, 8 on 64bits (and mingw32 ?) */
    CASE
        WHEN version() ~ 'mingw32' OR version() ~ '64-bit' THEN 8
        ELSE 4
    END AS maxalign,
    24 AS pagehdr,
    /* per tuple header: add index_attribute_bm if some cols are null-able */
    CASE WHEN max(coalesce(s.null_frac,0)) = 0
        THEN 2
        ELSE 6
    END AS index_tuple_hdr,
    /* data len: we remove null values save space using it fractionnal part from stats */
    sum( (1-coalesce(s.null_frac, 0)) * coalesce(s.avg_width, 2048) ) AS nulldatawidth
    FROM pg_attribute AS a
    JOIN pg_stats AS s ON (quote_ident(s.schemaname) || '.' || quote_ident(s.tablename))::regclass=a.attrelid AND s.attname = a.attname
    JOIN btree_index_atts AS i ON i.indrelid = a.attrelid AND a.attnum = i.attnum
    WHERE a.attnum > 0
    GROUP BY 1, 2, 3, 4, 5, 6, 7, 8, 9
),
index_aligned AS (
    SELECT maxalign, bs, nspname, relname AS index_name, reltuples,
        relpages, relam, table_oid, index_oid,
      ( 2 +
          maxalign - CASE /* Add padding to the index tuple header to align on MAXALIGN */
            WHEN index_tuple_hdr%maxalign = 0 THEN maxalign
            ELSE index_tuple_hdr%maxalign
          END
        + nulldatawidth + maxalign - CASE /* Add padding to the data to align on MAXALIGN */
            WHEN nulldatawidth::integer%maxalign = 0 THEN maxalign
            ELSE nulldatawidth::integer%maxalign
          END
      )::numeric AS nulldatahdrwidth, pagehdr
    FROM index_item_sizes AS s1
),
otta_calc AS (
  SELECT bs, nspname, table_oid, index_oid, index_name, relpages, coalesce(
    ceil((reltuples*(4+nulldatahdrwidth))/(bs-pagehdr::float)) +
      CASE WHEN am.amname IN ('hash','btree') THEN 1 ELSE 0 END , 0 -- btree and hash have a metadata reserved block
    ) AS otta
  FROM index_aligned AS s2
    LEFT JOIN pg_am am ON s2.relam = am.oid
),
raw_bloat AS (
    SELECT current_database() as dbname, nspname, c.relname AS tablename, index_name,
        bs*(sub.relpages)::bigint AS totalbytes,
        CASE
            WHEN sub.relpages <= otta THEN 0
            ELSE bs*(sub.relpages-otta)::bigint END
            AS wastedbytes,
        CASE
            WHEN sub.relpages <= otta
            THEN 0 ELSE bs*(sub.relpages-otta)::bigint * 100 / (bs*(sub.relpages)::bigint) END
            AS realbloat,
        pg_relation_size(sub.table_oid) as table_bytes
    FROM otta_calc AS sub
    JOIN pg_class AS c ON c.oid=sub.table_oid
)
SELECT  wastedbytes as bloat_bytes,
        totalbytes as index_size
FROM raw_bloat
) AS s4;

It outputs for example :

 index_size | bloat_size
------------+------------
 283 MB     | 199 MB

Cache usage

Amount of data read from disk and total for all user tables of a database and their indexes.

WITH
stats_heap AS
(
    SELECT
    (SELECT sum(heap_blks_read) FROM pg_statio_user_tables)::bigint as heap_read,
    (SELECT sum(heap_blks_hit) FROM pg_statio_user_tables)::bigint as heap_hit
),
stats_idx AS
(
    SELECT
    (SELECT sum(idx_blks_read) FROM pg_statio_user_indexes)::bigint as idx_read,
    (SELECT sum(idx_blks_hit) FROM pg_statio_user_indexes)::bigint as idx_hit
),
bs AS
(
    SELECT
    cast(current_setting('block_size') AS integer) AS block_size
)
SELECT current_database() AS dbname, (heap_read * block_size)::bigint as heap_read, (heap_hit * block_size)::bigint as heap_hit, ((heap_hit::float - heap_read::float) / heap_hit::float)::float as heap_ratio,
(idx_read * block_size)::bigint as idx_read, (idx_hit * block_size)::bigint as idx_hit, ((idx_hit::float - idx_read::float) / idx_hit::float)::float as idx_ratio FROM bs, stats_heap, stats_idx;

This query could work for system tables by using the pg_statio_sys_tables table.

Of course, it could be also written to analyze cache usage for a single table :

SET you.table_name = 'report';
WITH
stats_heap AS
(
    SELECT
    (SELECT heap_blks_read FROM pg_statio_user_tables where relname=current_setting('you.table_name'))::bigint as heap_read,
    (SELECT heap_blks_hit FROM pg_statio_user_tables where relname=current_setting('you.table_name'))::bigint as heap_hit
),
stats_idx AS
(
    SELECT
    (SELECT sum(idx_blks_read) FROM pg_statio_user_indexes where relname=current_setting('you.table_name'))::bigint as idx_read,
    (SELECT sum(idx_blks_hit) FROM pg_statio_user_indexes where relname=current_setting('you.table_name'))::bigint as idx_hit
),
bs AS
(
    SELECT
    cast(current_setting('block_size') AS integer) AS block_size
)
SELECT
    current_database() AS dbname,
    (heap_read * block_size)::bigint as heap_read,
    (heap_hit * block_size)::bigint as heap_hit,
    CASE WHEN heap_hit != 0
        THEN ((heap_hit::float - heap_read::float) / heap_hit::float)::float
        ELSE 0
    END as heap_ratio,
    (idx_read * block_size)::bigint as idx_read,
    (idx_hit * block_size)::bigint as idx_hit,
    CASE WHEN idx_hit != 0
        THEN ((idx_hit::float - idx_read::float) / idx_hit::float)::float
        ELSE 0
    END as idx_ratio
FROM bs, stats_heap, stats_idx;

Warning

It's rather difficult to know if the right formula for ratio is (heap - hit) / hit or hit / (read + hit). It depends if we consider that all disk read (read field) put data into the cache (hit field) or not !
Both exists on the Internet.
