Checkpoints

What's is a checkpoint ?

This is a good reading from 2nd quadrant.

Data are first written to WAL (Write Ahead Log) files before being copied to data files. That way to process ensures durability : in case of a crash, database will use WAL to recover data and write them to data files.

Users only have to wait for WAL files to be flushed to disk to have data available in DB. By this time, RAM cache could be used for users and be flushed to disk later.

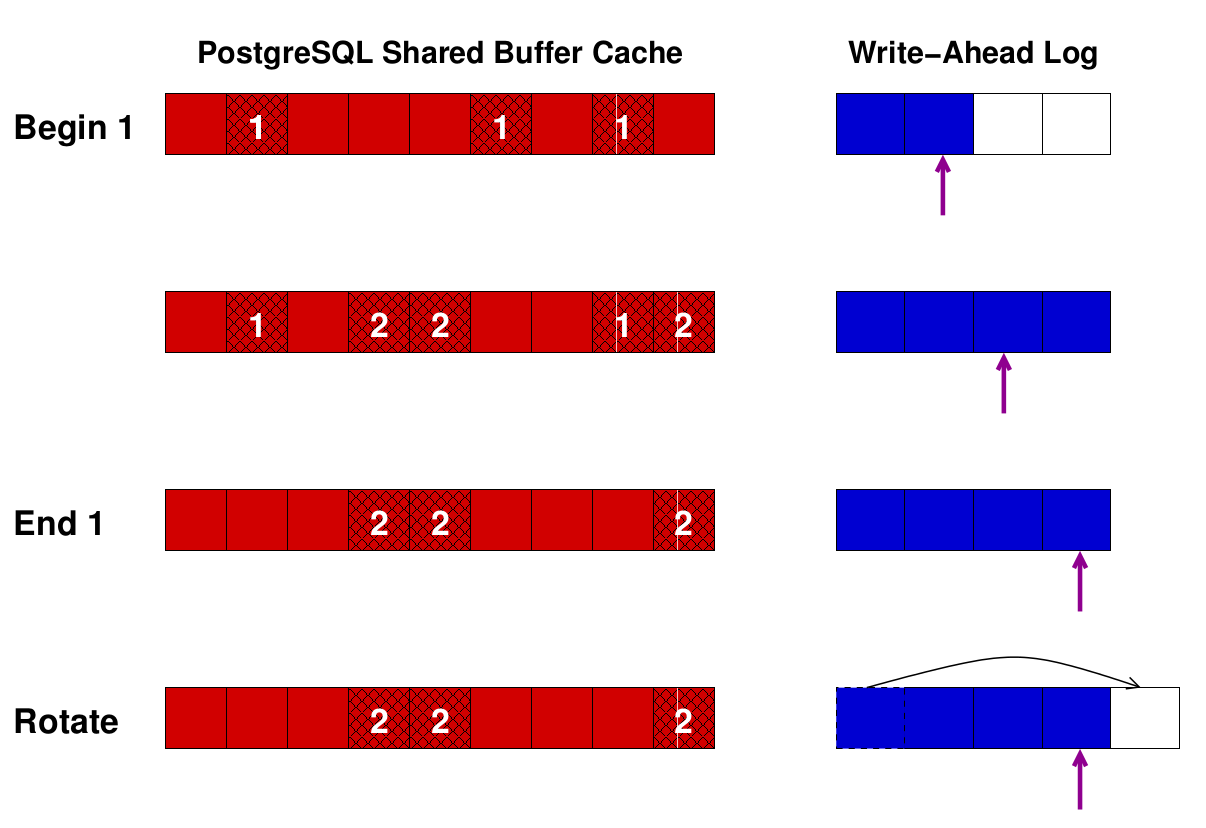

A checkpoint writes all dirty pages from memory to disk, marks them as “clean" in shared_buffers, and stores information that all of wal up to now is applied : WAL files are not needed before the checkpoint position.

In practice, we often want to find a good ratio between :

• having not too frequent checkpoints so IO for buffers is spread on a large amount of time
• but frequent enough to limit the recovery time after a crash and to limit the disk usage for WAL files

What trigger checkpoints ?

Basically, timeout or size :

• it's been more than the checkpoint_timeout value since previous checkpoint ended
• WAL folder (/pgsql_folder/pg_xlog/ before version 10 or /pgsql_folder/pg_wal/ since) if full. Its size could not be more than the max_wal_size value.

Checkpoints should be mostly triggered by timeout, not size.

Spread checkpoints

Checkpoints is basically a writing to disk of dirty buffers. Its job must be done during a fraction of the checkpoint total time, fraction set by the checkpoint_completion_target parameters (0.5 by default).

Checkpoint and Linux Cache

Linux cache by default can handle a great amount of data before flushing it to the storage. It could be harmful for the checkpoint process. If we tune the checkpoint to spread the writing on a quite long time and the OS cache get it and flush all at a single time, it will create an I/O pike.

It could be better not to let the cache keep too much data and be force to flush it more frequently.

See details on how to tune Linux Kernel for Database performance usage.

Control activity

Of course, stats could be gathered. But also, a global status of the server is available by the command /usr/lib/postgresql/9.6/bin/pg_controldata /var/lib/postgresql/9.6/main/ and outputs :

pg_control version number:            960
Catalog version number:               201608131
Database system identifier:           6382382084904487037
Database cluster state:               in production
pg_control last modified:             Tue 23 Jan 2018 10:24:56 AM CET
Latest checkpoint location:           1D70/D4518DB8
Prior checkpoint location:            1D6F/58F47450
Latest checkpoint's REDO location:    1D6F/80331B08
Latest checkpoint's REDO WAL file:    0000000100001D6F00000080
Latest checkpoint's TimeLineID:       1
Latest checkpoint's PrevTimeLineID:   1
Latest checkpoint's full_page_writes: on
Latest checkpoint's NextXID:          0:265937941
Latest checkpoint's NextOID:          17869586
Latest checkpoint's NextMultiXactId:  1
Latest checkpoint's NextMultiOffset:  0
Latest checkpoint's oldestXID:        70567326
Latest checkpoint's oldestXID's DB:   20430
Latest checkpoint's oldestActiveXID:  0
Latest checkpoint's oldestMultiXid:   1
Latest checkpoint's oldestMulti's DB: 20430
Latest checkpoint's oldestCommitTsXid:0
Latest checkpoint's newestCommitTsXid:0
Time of latest checkpoint:            Tue 23 Jan 2018 09:03:56 AM CET
Fake LSN counter for unlogged rels:   0/1
Minimum recovery ending location:     0/0
Min recovery ending loc's timeline:   0
Backup start location:                0/0
Backup end location:                  0/0
End-of-backup record required:        no
wal_level setting:                    minimal
wal_log_hints setting:                off
max_connections setting:              200
max_worker_processes setting:         8
max_prepared_xacts setting:           0
max_locks_per_xact setting:           256
track_commit_timestamp setting:       off
Maximum data alignment:               8
Database block size:                  8192
Blocks per segment of large relation: 131072
WAL block size:                       8192
Bytes per WAL segment:                16777216
Maximum length of identifiers:        64
Maximum columns in an index:          32
Maximum size of a TOAST chunk:        1996
Size of a large-object chunk:         2048
Date/time type storage:               64-bit integers
Float4 argument passing:              by value
Float8 argument passing:              by value
Data page checksum version:           0

That is a mix of settings and running statuses.
